Schematic Diagrams for Electric Guitars & Bass
I searched the internet to find schematic diagrams for my bass guitar that I built myself. I am getting ready to upgrade the potentiometers, capacitors & wiring & didn’t like all of the wiring diagrams I was finding.

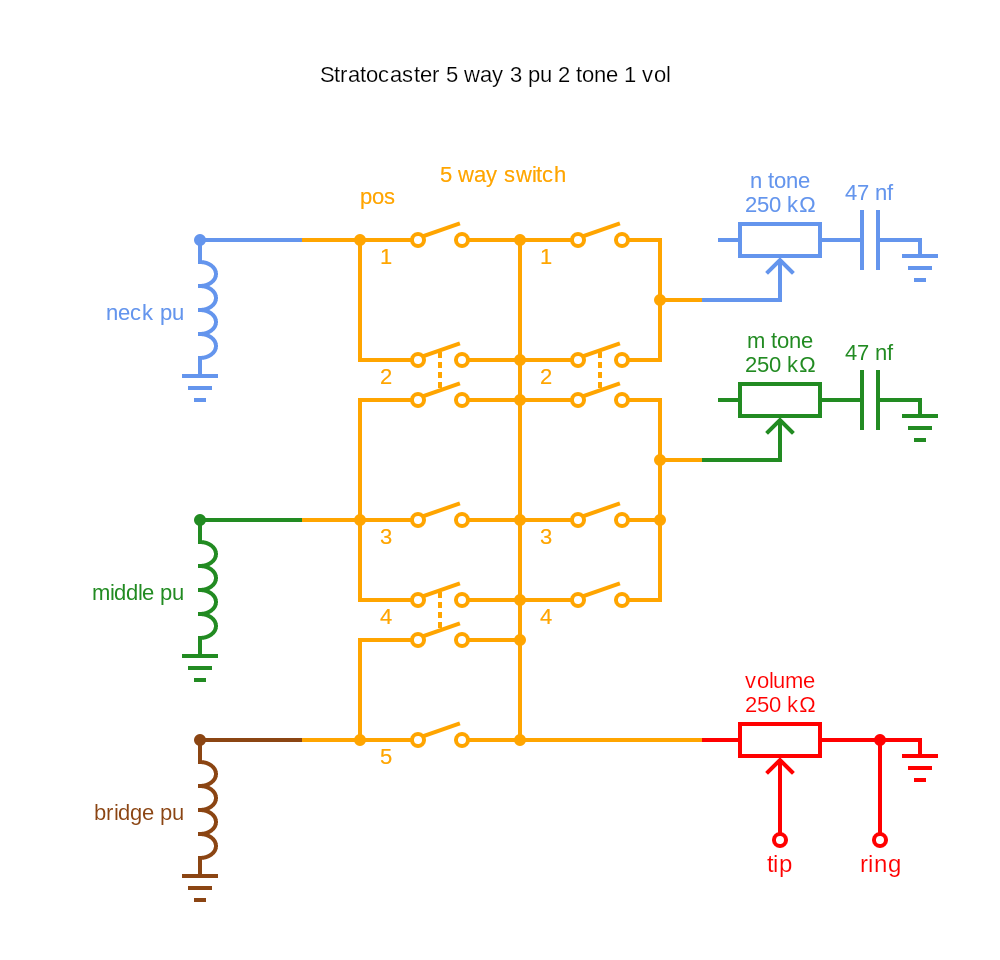

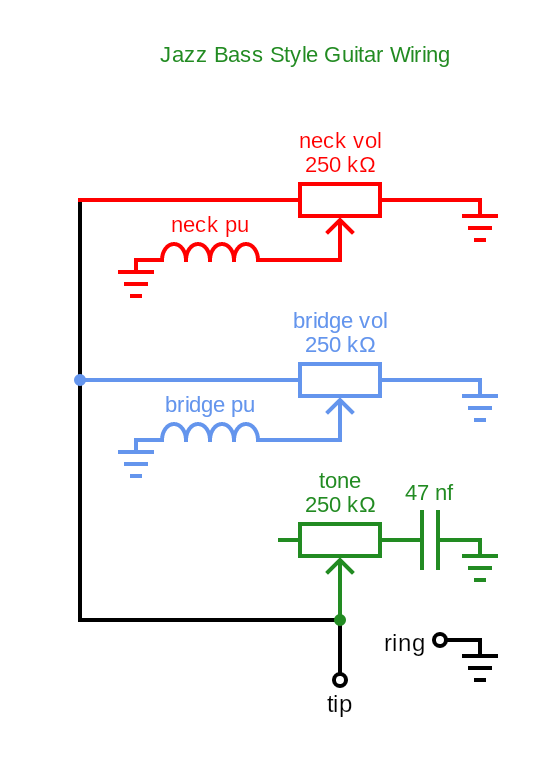

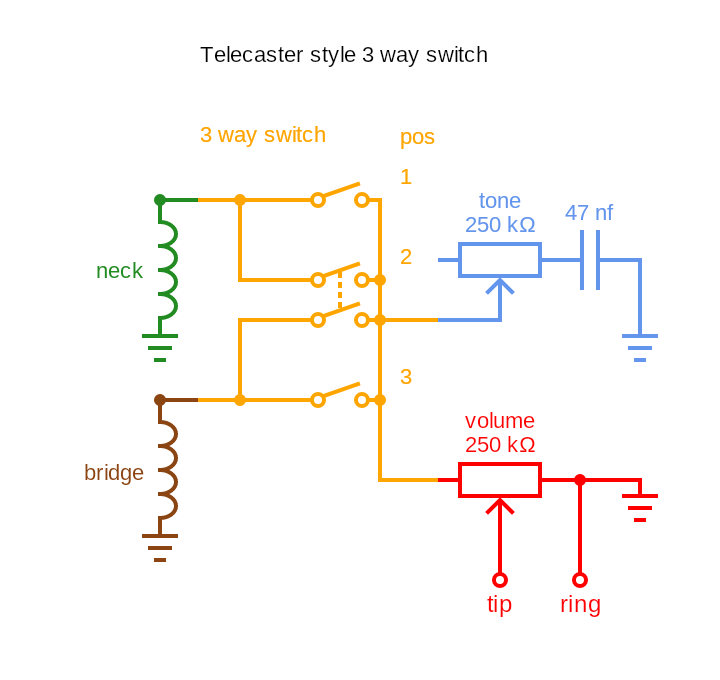

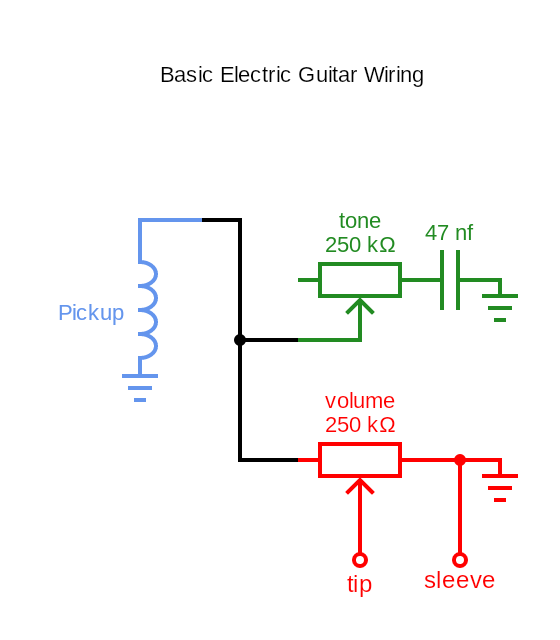

These schematics are reverse engineered by me, so they might be completely wrong. What the heck, I tried. I used CircuitDiagram.com to build it.
These are the best representations of the guitar wiring diagrams I was seeing online. I had some trouble figuring out the switches as there are no diagrams of the internal structure. If I have something wrong please let me know. Chris at this website URL.
